Ⅰ. Product Overview:

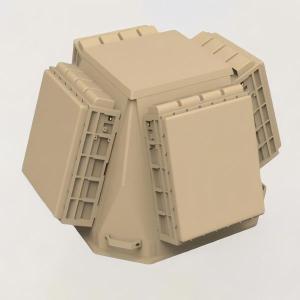

The LKXR-RD107 series is an X-band, medium-range phased-array radar consisting of four two-dimensional electronically scanned faces. Utilizing all-solid-state, fully coherent pulse-Doppler technology and AI-based machine-learning recognition, it detects, tracks and identifies “low, slow & small” (LSS) targets around the clock. Compared with mechanically rotated systems, the four-face array delivers higher reliability and superior multi-target discrimination. Three power tiers—3 km, 5 km and 8 km—cover diverse operational needs.
Ⅱ. Product Features
• 360°Continuous Coverage: Four fixed faces eliminate azimuth blind zones.
• Dense Multi-Target Tracking: TAS mode supports ≥24 simultaneous tracks.
• AI-Enhanced Discrimination: Machine-learning algorithms suppress clutter and reduce false alarms on 0.01 m² RCS targets.
• Scalable Range: Single hardware platform offered in 3 km, 5 km or 8 km variants.
• Dual Power Flexibility: Operates from either DC 24 V or AC 220 V.
• Wide Temperature Tolerance: Certified from –40 °C to +70 °C for extreme environments.
Ⅲ. Qualification
| Specification | 107A | 107B | 107C |
| Detection Range (RCS 0.01 m²) | ≥5 km | ≥8 km | ≥3 km |
| Blind Zone | ≤200 m | ≤200 m | ≤100 m |
| Coverage | Azimuth 360° (config.) | Azimuth 360°Elevation 0°–30° | Azimuth 360° |
| Tracking Capacity | TAS ≥24 targets | TAS ≥24 targets | TAS ≥24 targets |
| Velocity Range | 1–100 m/s | 1–100 m/s | 1–100 m/s |
| Accuracy (Range / Az / El) | <10 m / <0.5° / <0.5° | <10 m / <0.5° / <0.5° | <10 m / <0.5° / <1° |
| Update Rate | Search ≤3s | Search ≤3s TAS ≤0.5s | Search≤3.5s |
| Interface | Ethernet | Ethernet | Ethernet |
| Weight | ≤90 kg | ≤100 kg | ≤90 kg |
| Power Supply | DC 24 V / AC 220 V | DC 24 V / AC 220 V | DC 24 V / AC 220 V |
| Power Consumption | ≤1200 W | ≤2000 W | ≤880 W |
| Dimensions (mm) | 860 × 860 × 420 | 890 × 860 × 420 | 860 × 860 × 420 |
| Operating Temperature | –40 °C～+70 °C | –40 °C～+60 °C | –40 °C～+70 °C |
Ⅳ. Selling Points
• Instant 360° Awareness: No mechanical rotation—threats are acquired and tracked in every direction at once.
• 24-Target TAS Performance: Ideal for drone swarms or busy air corridors.
• Same Footprint, Three Distances: Choose the range you need without redesigning mounts or power.
• Ultra-Low Blind Zone: ≤100–200 m captures threats right at the perimeter.
• High MTBF, Low Maintenance: Solid-state, no moving parts—reduces downtime and service costs.
