Ⅰ. Product Overview

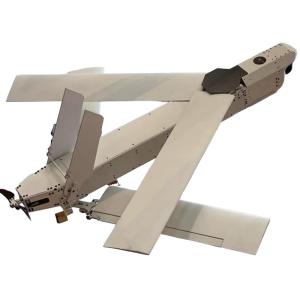

The 5 kg-class loitering munition is a man-packable, integrated storage-transport-launch precision weapon system. Launched by gas-ejection from a sealed tube without a runway, it enables rapid deployment in complex battlefields. Equipped with a dual-mode IR/EO seeker and a 0.8 kg multi-purpose warhead, the system delivers 55 min endurance and 15 km strike radius, enabling “detect-and-destroy” missions against personnel and light armor.
Ⅱ. Product Highlights
1. Man-portable: complete system ≤10 kg; one soldier carries and fires.
2. Store-Transport-Launch integration: launch tube doubles as sealed container—open and fire.
3. Rapid response: gas-ejection accelerates 0-150 km/h in <2 s.
4. Precision & low collateral: CEP ≤1 m, lethal radius 15 m—urban safe.
5. High survivability: low radar/IR signature, 2 000 m ceiling, operates in 6-grade wind.
3. Technical Specifications
Ⅲ. Product indicators
| Item | Specification |
| Take-off weight | 5 kg |
| Total system weight | ≤10 kg (including munition & launch tube) |
| Launch-tube dimensions | 123 mm × 123 mm × 900 mm |
| Flight speed | 80–150 km/h |
| Service ceiling | 2 000 m |
| Maximum loiter time | 55 min |
| Operational radius | 15 km |
| Reconnaissance/seeker | Dual-mode EO/IR gimbal |
| Warhead | 0.8 kg multi-purpose; 15 m lethal radius |
| Armor penetration | ≥70 mm RHA vertical |
| Strike accuracy | CEP ≤1 m |
| Wind resistance | Beaufort 6 |
| Control terminal | Soldier handheld or rugged ground station |
| Launch method | Gas-ejection |
| Typical targets | Personnel & light armor |
Ⅳ. Key Features
Ultra-light & compact: fits into a backpack for SOF missions.
Multi-platform ready: rapid integration on vehicles, vessels, etc.
Multiple flight modes: loiter, dive, cruise—adapts to complex tasks.
Easy maintenance: modular seeker & warhead can be swapped in field.
All-weather: IR/EO dual channel for day/night and light fog operations.
